Venturi Steam Trap

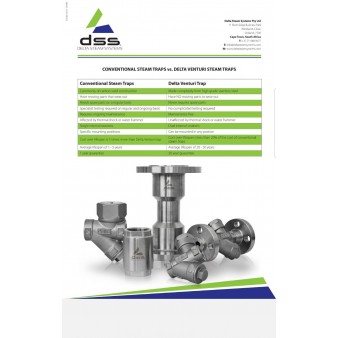

Delta venturi vs. conventional mechanical steam traps.

Delta Venturi steam traps have no internal moving parts. Because we have no internal moving parts our steam traps do not fail and break and do not need to be repaired or require spare parts. Because our steam traps have no internal moving parts we guarantee our steam traps for 20 years on steam distribution lines and process applications. Our steam traps work on the principle of downstream flash steam to self-regulate the upstream condensate flow and allow condensate to be removed and keep the steam in the system.

Conventional mechanical steam traps all use some form of mechanical system to open and close. Some use an inverted bucket or a ball or bimetallic element or discs or thermostatic elements but they all use some form of moving part that allows the valve to open and close.

Because these conventional steam traps have mechanical parts, these valves open and close hundreds of times a day, thousands of times a month and millions of times a year.

After a period of time, these moving parts start to wear out and eventually they will break and then the conventional mechanical steam traps will start to leak large amounts of steam, which is both expensive and causes unnecessary pollution.
